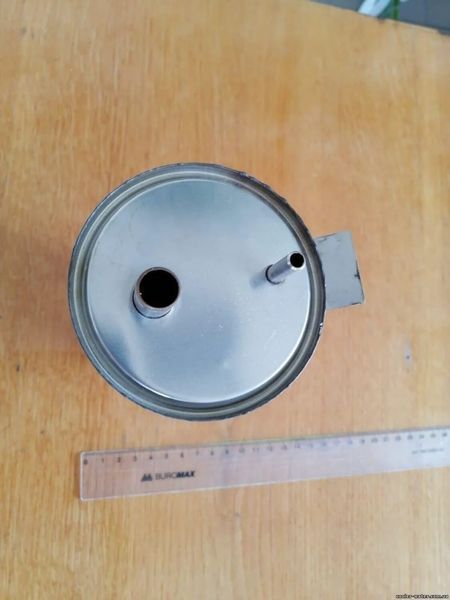

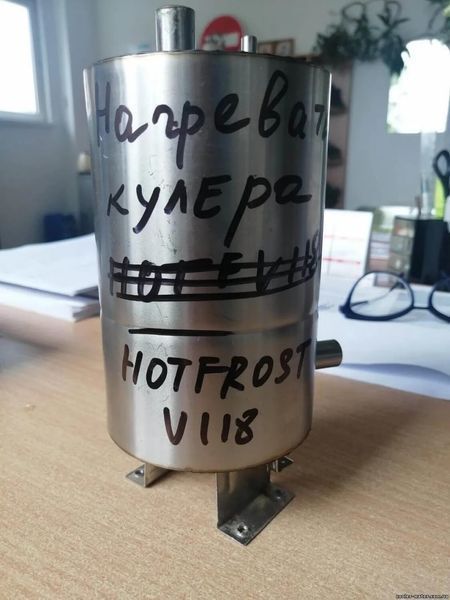

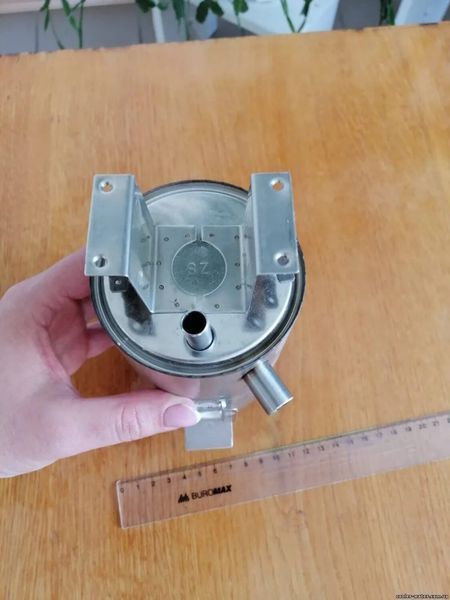

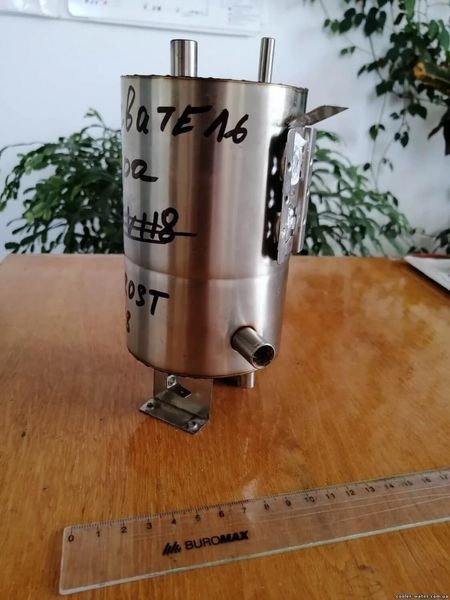

Hot water tank for cooler HotFrost V118F, V118E, V118, V115CE, V802CE, V35AN, V35AEN, V45. And also Cooper&Hunter series CH-V118 fn/C/E, V128 EN/FN and other TM.

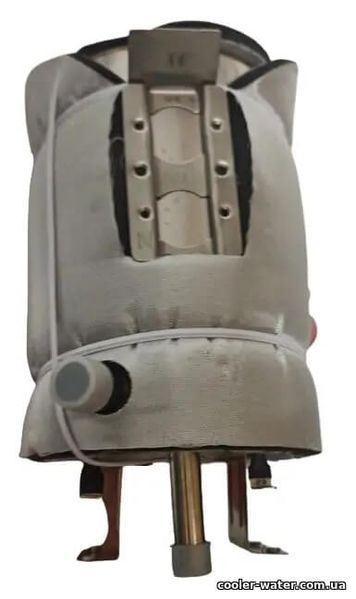

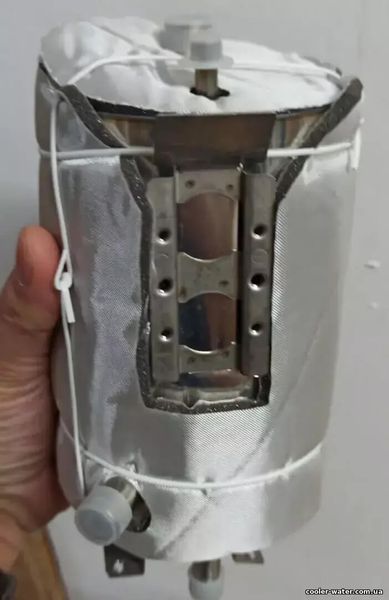

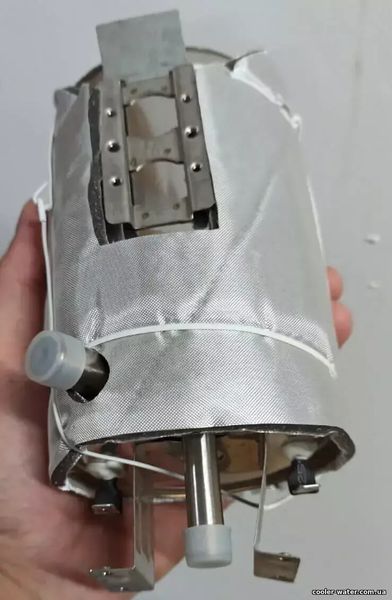

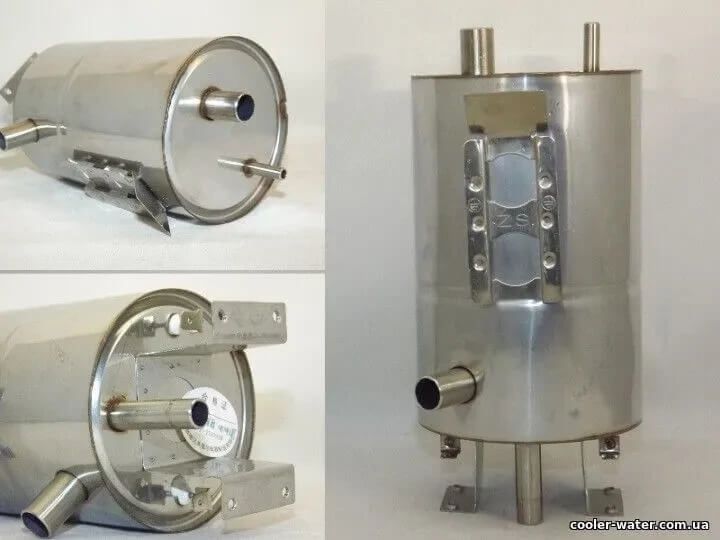

All-welded metal cooler tank for heating drinking bottled water with a soldered internal heating element. The tank is supplied without sensors on the tank, but there is a fur coat in the tank casing around the circle. Bottom mount on legs.

A constant temperature of hot water in the tank from +89 to +97 degrees is maintained by two KSD temperature sensors and a ball check valve.
1. Temperature sensor KSD201-M 10A97 with a button - vertical terminals, fixed flange, nominal temperature +97 degrees.
2. Temperature sensor KSD201/PF 10A89 - vertical terminals, fixed flange, nominal temperature +89 degrees.
The temperature sensors are attached to a round socket on the bar with two bolts, necessarily on KPT-8 thermal paste. They are used in household appliances for emergency shutdown in case of overheating.
3. Ball check valve - height 50 mm, inlet diameter 12 mm, outlet diameter 12 mm, expansion zone diameter 25 mm.

It is mounted between the distribution and heating tank on silicone pipes and prevents hot water from mixing with cold water.

To speed up the selection of heating tanks for your cooler model, follow these steps:
1) Take a photo of your spare part and cooler.
2) Send all information to us via Viber/Telegram: 0988184117

How to replace cooler tanks — video is available on our YouTube channel.
